Charity Organization Portal

A full-stack web application for managing charitable organizations — events, volunteers, members, news, and communications — built with Node.js, React 19, and MongoDB.

Live demo: https://charity-portal.onrender.com

---

Table of Contents

1. Overview
2. Screenshots
3. Tech Stack
4. Architecture
5. Key Features
6. API Reference
7. Database Schema
8. Application Map
9. Project Structure
10. Getting Started
11. Security Highlights
12. Credits

---

Overview

The Charity Portal is a role-aware web application that centralizes the day-to-day operations of a charitable organization. It supports five user roles — Member, Administrator, Organizer, Volunteer, and Performer — each with tailored access to events, news, volunteer coordination, and administrative tools.

The project began as a Create React App (CRA) monolith and has since been modernized: frontend-v2/ replaces the legacy frontend/ with Vite + React 19 + MUI v7, resolving all previously reported audit vulnerabilities and cutting cold-start build times significantly.

---

Screenshots

Home Page

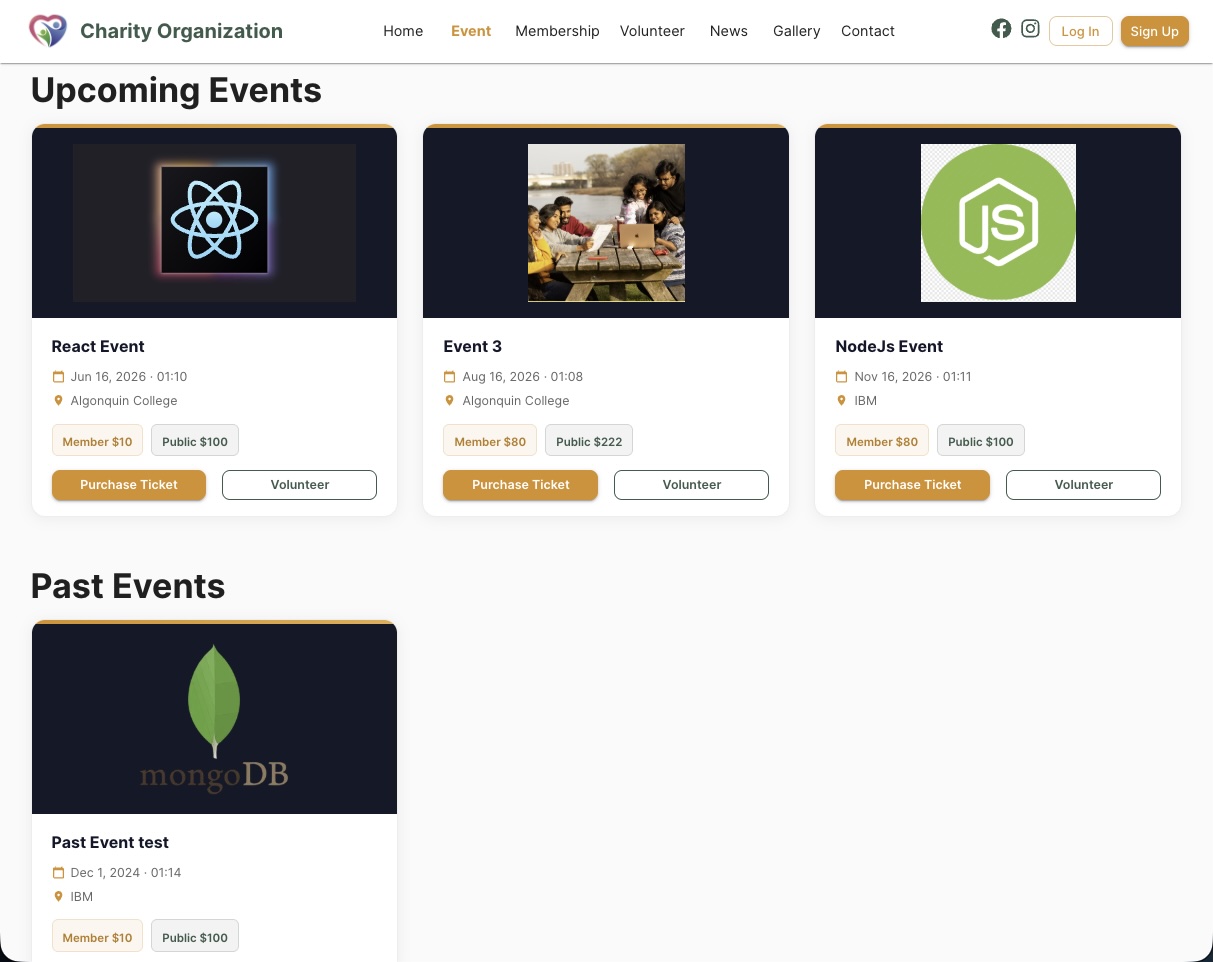

Event Listings

Admin Dashboard (Member/Volunteer Management Table)

<!-- TODO: screenshot — add ReadmeFiles/AdminDashboard.jpg showing Material-React-Table -->

News Portal

<!-- TODO: screenshot — add ReadmeFiles/NewsPortal.jpg showing role-filtered post cards -->

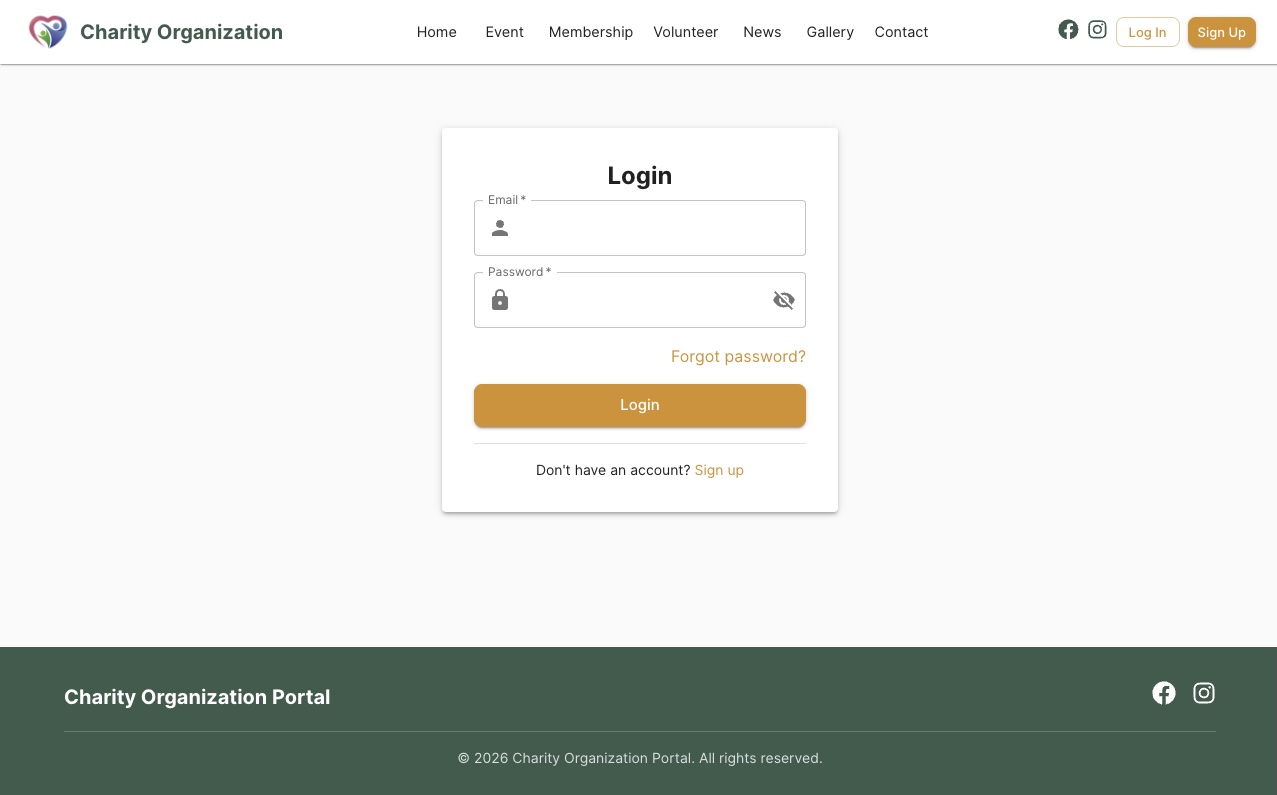

Login Page

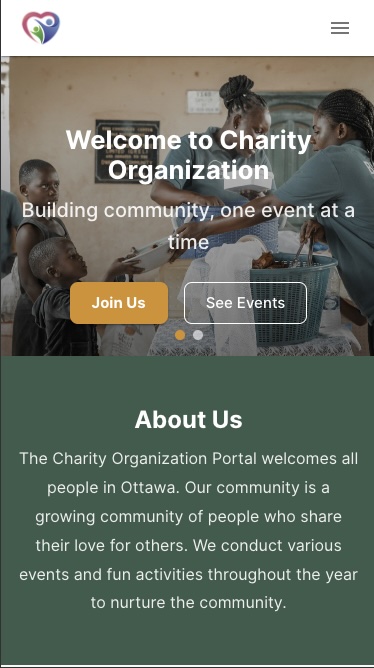

Mobile View (375px)

---

Tech Stack

Backend

Layer	Technology
Runtime	Node.js 18+
Framework	Express.js 4.21
Database	MongoDB 8.x + Mongoose ODM
Auth	JWT (jsonwebtoken 9) + bcryptjs
File Storage	Multer + Cloudinary
Email	Nodemailer + Gmail API (googleapis)
OTP	Custom OTP model + email delivery
Dev	Nodemon

Frontend-v2 (active)

Layer	Technology
Bundler	Vite 7
Framework	React 19
UI Library	MUI v7 (Material-UI)
Routing	react-router-dom 7
HTTP	Axios
Rich Text	React-Quill 2
Data Tables	Material-React-Table 3
Toasts	react-toastify

frontend/ (CRA) is archived in-place. All active development targets frontend-v2/.

---

Architecture

The application follows a classic three-tier architecture:

• Presentation layer — React 19 SPA served via Vite dev server or static hosting. MUI v7 components provide a consistent Material Design UI with a custom amber/green theme.
• Application layer — Express.js REST API handles business logic, RBAC enforcement via JWT middleware, file uploads via Multer/Cloudinary, and email dispatch via Gmail API.
• Data layer — MongoDB Atlas stores all application data. Mongoose schemas enforce structure and relationships across 7 collections.

---

Key Features

Multi-Role RBAC (5 roles)

• Roles: Member, Administrator, Organizer, Volunteer, Performer
• JWT-based session with role ID stored in token payload
• ProtectedRoute component in React guards client-side navigation
• Middleware on every sensitive API endpoint verifies token and role before processing

Event Management

• Full CRUD for events (create, read, update, delete)
• Image uploads via Multer (multipart) → Cloudinary CDN
• Events displayed as responsive MUI cards with images, dates, and descriptions
• Past-events view separates upcoming from historical events

Volunteer Coordination

• Public volunteer sign-up form with OTP verification before submission
• Admin table (Material-React-Table) for viewing and managing all volunteers
• Bulk email notifications to volunteers via Gmail API

News / Posts Portal

• Role-filtered content: non-members see public posts; logged-in users see role-specific posts
• Rich text authoring via React-Quill 2 (WYSIWYG with image resize support)
• Post notification emails sent to relevant users on publish

User Management

• Admin-only table (Material-React-Table) listing all registered users
• Inline edit and delete with confirmation
• Filter and sort by role, name, or email

Contact Form

• Public contact form delivers submissions to the admin inbox via Gmail API
• Sender receives a confirmation copy of their submitted message

Password Reset

• "Forgot password" initiates a secure time-limited token sent by email
• Token-based reset route (/reset-password/:token) validates and updates the hashed password

Responsive Design

• MUI Grid container with xs=12 sm=6 md=4 breakpoints throughout
• Mobile-first layout tested at 375px, 768px, and 1280px viewports
• Consistent <Container maxWidth="lg"> wrapper on all pages

---

API Reference

Resource	Method	Endpoint	Auth
Auth	POST	/api/auth/login	Public
Auth	POST	/api/auth/signup	Public
Auth	POST	/api/auth/forgetPassword	Public
Auth	PATCH	/api/auth/resetPassword/:token	Public
Users	GET	/api/user/getAllUsers	Admin
Users	PATCH	/api/user/updateUser/:id	Admin
Users	DELETE	/api/user/deleteUser/:id	Admin
Events	GET	/api/event/readEvent	Public
Events	POST	/api/event/addEvent	Auth
Events	PATCH	/api/event/updateEvent/:id	Auth
Events	DELETE	/api/event/deleteEvent/:id	Auth
Events	POST	/api/event/upload	Auth
Volunteers	POST	/api/volunteer/volunteerSignUp	Auth
Volunteers	GET	/api/volunteer/getAllVolunteers	Admin
Volunteers	POST	/api/volunteer/notify-volunteers	Admin / Organizer
Posts	GET	/api/post/getPostsForNonMember	Public
Posts	POST	/api/post/getPostByRole	Auth
Posts	POST	/api/post/addPost	Auth
Posts	POST	/api/post/notify-users	Auth
OTP	POST	/api/otp/send-otp	Public
OTP	POST	/api/otp/verify-otp	Public
Contact	POST	/api/contact/send-contact-email	Public

---

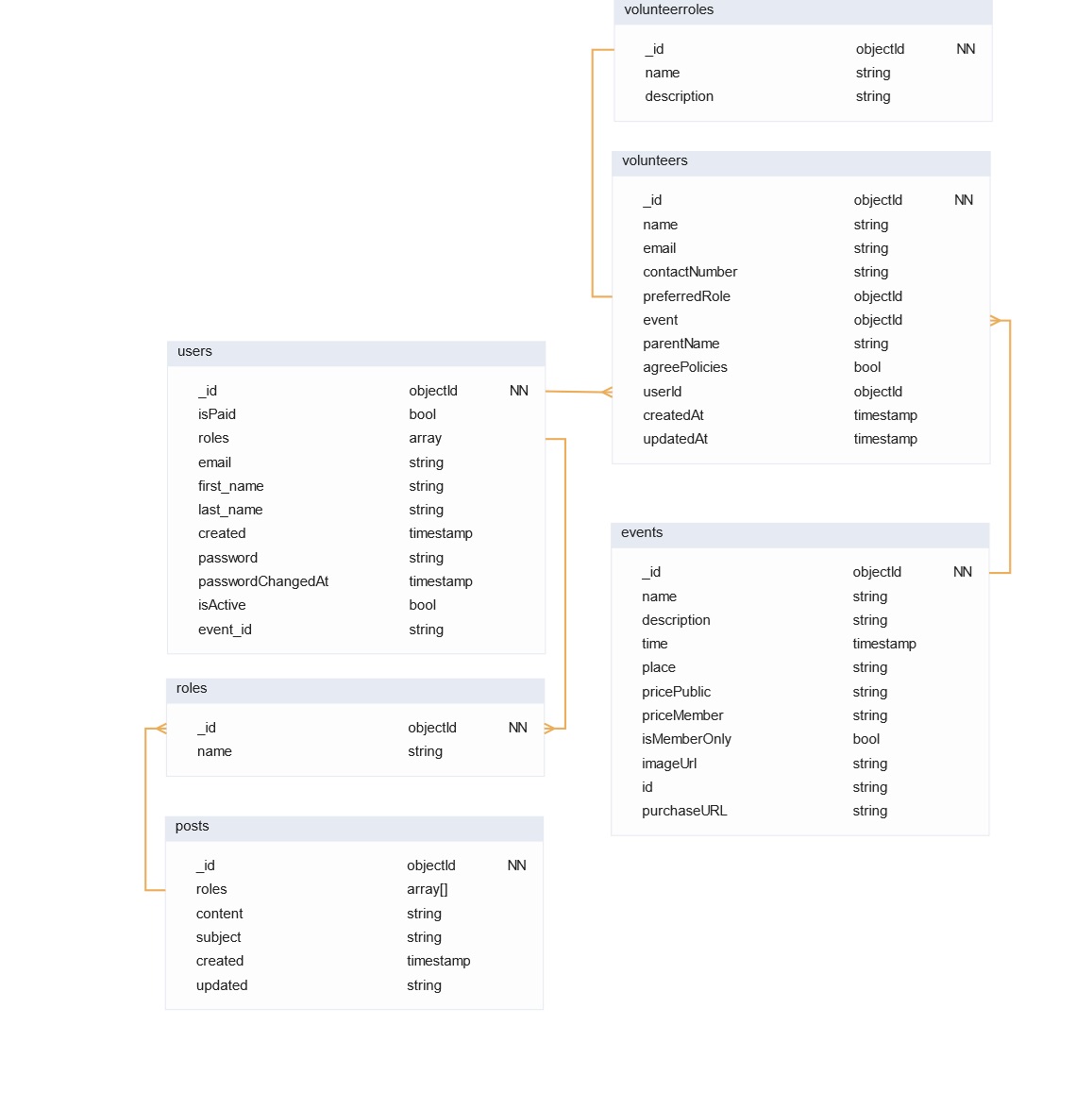

Database Schema

The application uses 7 MongoDB collections:

Collection	Purpose
User	Registered accounts; stores hashed password, role reference, profile data
Event	Event records with title, description, date, image URL
Post	News/blog posts with rich-text body, target role, author
Volunteer	Volunteer sign-up records linked to events and users
Role	Role definitions (Member, Admin, Organizer, Volunteer, Performer)
VolunteerRole	Junction collection mapping volunteers to specific roles per event
OTP	Time-limited one-time passwords for volunteer sign-up verification

---

Application Map

Public Routes	Protected Routes (Admin)
/ — Home	/member-manage — User management table
/event — Upcoming events	/volunteer-manage — Volunteer management table
/past-events — Past events	/add-news — Create/publish posts
/membership — Membership info
/volunteer — Volunteer sign-up
/news — News portal
/gallery — Photo gallery
/contact-us — Contact form
/login — Login
/register — Sign up
/reset-password/:token — Password reset
/policy — Privacy policy

---

Project Structure

Charity-Portal/
├── backend/
│   ├── controllers/         # Business logic per entity
│   ├── models/              # Mongoose schemas (User, Event, Post, …)
│   ├── routes/              # Express route definitions
│   └── utils/               # JWT helpers, email dispatch, OTP utilities
├── frontend/                # Legacy CRA app (archived, not actively maintained)
├── frontend-v2/             # Active: Vite + React 19 + MUI v7
│   └── src/
│       ├── components/      # Navbar, Footer, EventCard, PostCard, Auth forms…
│       ├── pages/           # Route-level page components (Home, Events, News…)
│       ├── router/          # ProtectedRoute RBAC guard
│       ├── utils/           # URL validation helpers
│       ├── UserContext.jsx  # Auth context (user, login, logout)
│       └── theme.js         # MUI createTheme — amber (#e88a1d) + green (#2e5d4b)
└── ReadmeFiles/             # Documentation assets (screenshots, diagrams)

---

Getting Started

Prerequisites

• Node.js ≥ 18, npm ≥ 9
• MongoDB Atlas account (free tier is sufficient)
• Cloudinary account (free tier)
• Gmail account with App Password enabled

Backend Setup

cd backend
npm install
cp .env.example .env   # fill in the values below
node server.js         # http://localhost:<SERVER_PORT>

Frontend Setup (frontend-v2)

cd frontend-v2
npm install
cp .env.example .env   # fill in VITE_* values below
npm run dev            # http://localhost:5173

Environment Variables

backend/.env

Variable	Description
MONGODB_URI	MongoDB Atlas connection string
JWT_SECRET	Secret key used for JWT signing
SERVER_PORT	Express server port (e.g. 5000)
EMAIL_USER	Gmail address used for notifications
EMAIL_PASSWORD	Gmail App Password
CLOUDINARY_CLOUD_NAME	Cloudinary cloud name
CLOUDINARY_API_KEY	Cloudinary API key
CLOUDINARY_API_SECRET	Cloudinary API secret

frontend-v2/.env

Variable	Description
VITE_BASE_URL	Backend API base URL (e.g. http://localhost:5000)
VITE_ROLE_ADMIN	MongoDB ObjectId of the Admin role
VITE_ROLE_MEMBER	MongoDB ObjectId of the Member role
VITE_ROLE_ORGANIZER	MongoDB ObjectId of the Organizer role
VITE_ROLE_VOLUNTEER	MongoDB ObjectId of the Volunteer role
VITE_ROLE_PERFORMER	MongoDB ObjectId of the Performer role

Role ObjectIds are generated by MongoDB on first server start. Check the roles collection in Atlas and copy the _id values into your .env.

---

Security Highlights

• Password hashing — bcryptjs with salted rounds; plaintext passwords are never stored
• JWT sessions — Signed tokens with role payload; verified by Express middleware on every protected route
• Role-Based Access Control — Five distinct roles enforced at both the API and client-router level
• OTP verification — Time-limited one-time passwords guard volunteer sign-up submissions
• Secure password reset — Token-based email flow with expiry; token invalidated after use
• CORS policy — Restricted to known frontend origins in production

---

Credits

• Timothy Norman
• Iseul Park
• Parth Patel
• Andres Camilo Porras Becerra
• Binbin Yang
• Dunxing Yu
